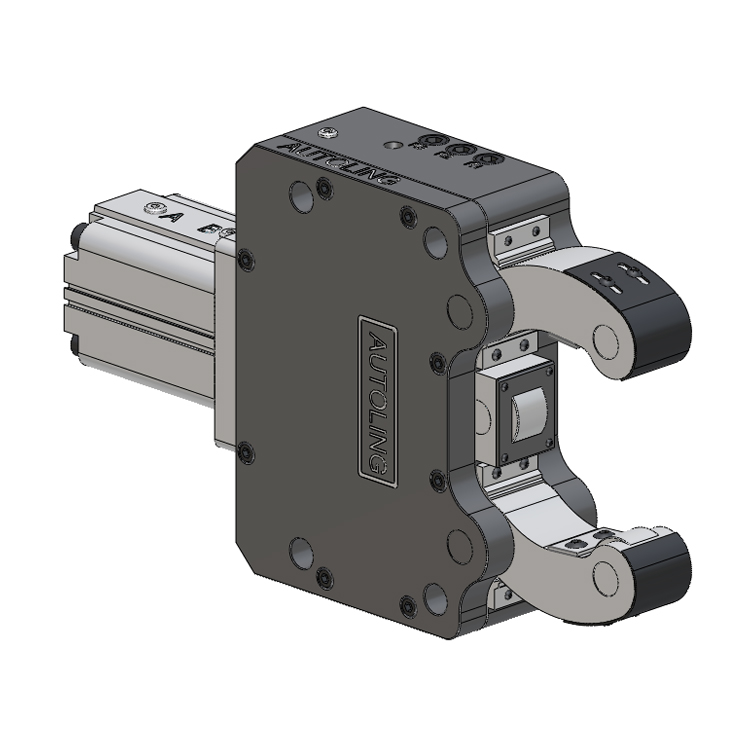

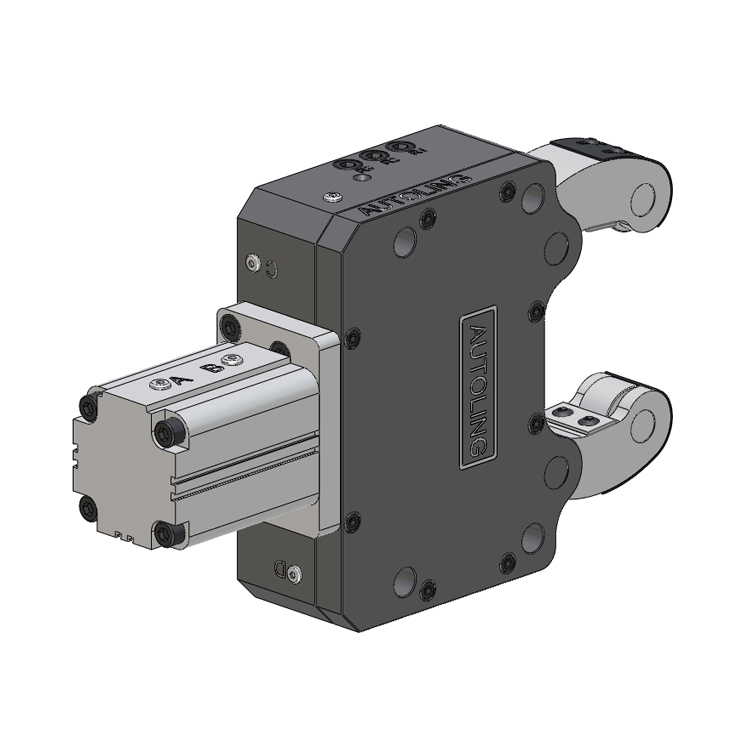

Automatic centering pneumatic cylinder, with small volume, high speed, and high precision, can be matched and installed with a robotic arm, making it convenient for large-scale use in automated production lines and improving production line automation efficiency. It can be customized non-standard.
Drainage and compressed air interface G1/8 "cylinder interface is G1/4
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | SAP-432 | SAP-850 | SAP-1062 | SAP-12102 | |
| Minimum clamping diameter | C1 | 4 | 8 | 10 | 12 |
| Maximum clamping diameter | C2 | 32 | 50 | 62 | 102 |
| Maximum opening (excluding protective cover) | C3 | 34 | 52 | 65 | 106 |
| Maximum opening (including protective cover) | C4 | 32 | 105 | 63 | 104 |
| A | 170 | 209 | 229 | 306 | |
| B | 90 | 120 | 135 | 197 | |
| C | 40 | 15 | 15 | 14 | |
| D | 120 | 120 | 135 | 205 | |
| E | 76 | 105 | 118 | 186 | |
| F | 40 | 55 | 64 | 85 | |
| G | 35 | 48 | 55 | 70 | |
| O | 32 | 45 | 51 | 69.5 | |
| Arm thickness | K | 12 | 18 | 25 | 35 |
| Roller thickness | L | 6 | 7 | 12 | 19 |
| roller diameter | M | 13 | 17 | 19 | 35 |
| P | 40 | 47 | 47 | 68 | |
| P1 | - | 47 | 54 | 100 | |
| P2 | 20 | 24.5 | 28 | 34 | |
| Fixed bolt | P3 | 20 | 22.5 | 26 | 34 |
| S | 7 | 9 | 11 | 14 | |
| T | 30 | 45 | 53 | 68 | |
| V | 25 | 32 | 37 | 54 | |
| Piston area | cm2 | 4.9 | 8 | 12.5 | 19.5 |
| Operating air pressure min/max | bar | 2/6 | 2/6 | 2/6 | 2/6 |
| Maximum clamping force of the roller | dan | 18 | 25 | 25 | 40 |
| Maximum circumferential linear speed of the roller | m/min | 300 | 850 | 850 | 700 |
| centering precision | mm | 0.02 | 0.02 | 0.02 | 0.02 |
| Repetitive positioning accuracy | mm | 0.008 | 0.005 | 0.005 | 0.008 |
| weight | kg | 3.5 | 5 | 7 | 12 |
*Non standard customization according to customer requirements*
