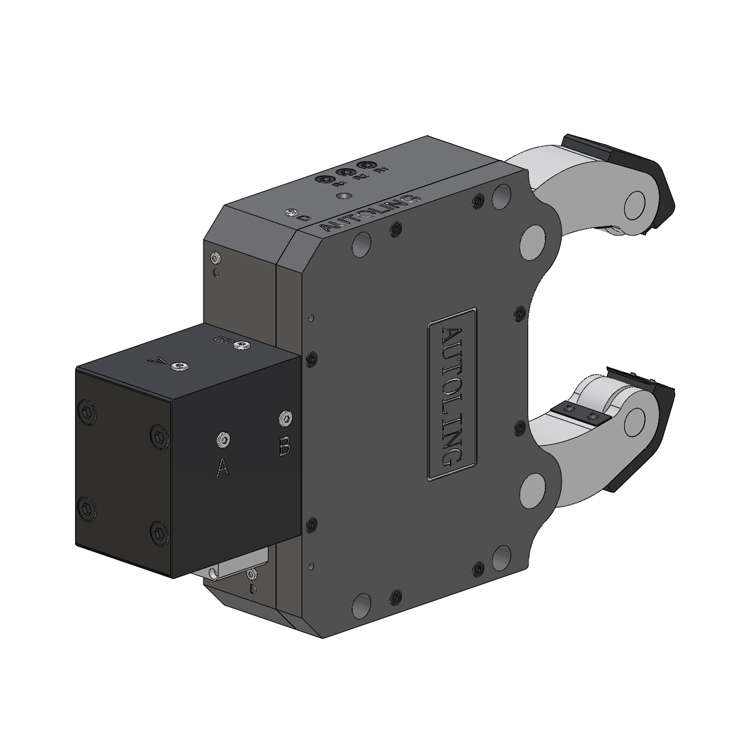

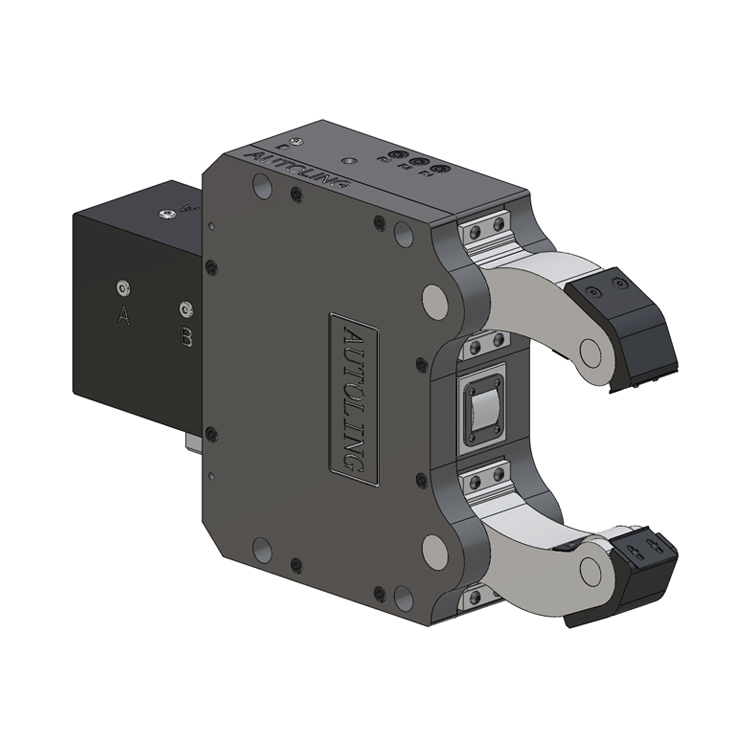

Fully sealed and programmable automatic centering, with hydraulic cylinder side mounted, greatly reducing the overall length of the center frame. The upper and lower arms have coolant/air interfaces, which can effectively clean iron filings and facilitate the installation of larger sizes and clamping of larger workpieces in narrow spaces.
Drainage and compressed air interface
G 1/8 "for sizes below 3.2 and G 1/4" for sizes above 4
Cylinder clamping and loosening interface
G 1/4 "for sizes below 3.2 and G 3/8" for sizes above 4
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | SCR-B 3 | SCR-B 3.1 | SCR-B3.2 | SCR-B 4 | SCR-B 5 | SCR-B5.1 | SCR-B 6 | SCR-B 7 | SCR-B8 | |
| Minimum clamping diameter | C1 | 12 | 20 | 50 | 30 | 45 | 85 | 125 | 200 | 230 |
| Maximum clamping diameter | C2 | 152 | 165 | 200 | 245 | 310 | 350 | 460 | 530 | 630 |
| Maximum opening (excluding protective cover) | C3 | 157 | 175 | 210 | 248 | 317 | 358 | 465 | 544 | 640 |
| Maximum opening (including protective cover) | C4 | 286 | 168 | 206 | 247 | 318 | 360 | 462 | 538 | 636 |
| A | 352 | 360 | 376 | 480 | 613 | 633 | 800 | 998 | 1060 | |
| B | 307 | 315 | 330 | 448 | 510 | 530 | 709 | 890 | 950 | |
| C | 45 | 45 | 45 | 37 | 102.5 | 102.5 | 91 | 100 | 110 | |
| D | 290 | 290 | 290 | 405 | 440 | 440 | 680 | 710 | 900 | |
| E | 262 | 262 | 262 | 365 | 400 | 400 | 640 | 650 | 810 | |
| F | 135 | 135 | 135 | 240 | 270 | 270 | 330 | 440 | 450 | |
| G | 204.5 | 204.5 | 204.5 | 245 | 325 | 325 | 350 | 405 | 484 | |
| O | 115 | 123 | 138 | 146 | 178 | 198 | 215 | 320 | 375 | |
| Arm thickness | K | 45 | 45 | 45 | 60 | 75 | 75 | 75 | 100 | 100 |
| Roller thickness | L | 25 | 25 | 25 | 25 | 29 | 29 | 29 | 32 | 32 |
| roller diameter | M | 47 | 47 | 47 | 52 | 62 | 62 | 80 | 100 | 100 |
| P | 130 | 130 | 130 | 150 | 160 | 160 | 185 | 260 | 240 | |
| P1 | 65 | 65 | 65 | 75 | 80 | 80 | 92.5 | 130 | 120 | |
| P2 | 65 | 65 | 65 | 75 | 80 | 80 | 92.5 | 130 | 120 | |
| Fixed bolt hole diameter | S | 18 | 20 | 18 | 23 | 23 | 23 | 27 | 27 | 35 |
| T | 95 | 95 | 95 | 110 | 145 | 145 | 150 | 180 | 190 | |
| V | 89 | 97 | 112 | 128 | 160 | 180 | 185 | 283 | 290 | |
| Piston area | cm2 | 38.5 | 38.5 | 38.5 | 63.5 | 78.5 | 78.5 | 113 | 132 | 176.6 |
| Operating oil pressure min/max | bar | 8/45 | 8/45 | 8/45 | 8/45 | 8/50 | 8/50 | 10/50 | 10/50 | 10/50 |
| Maximum clamping force of the roller | dan | 1020 | 1020 | 1020 | 1530 | 2040 | 2040 | 3060 | 3500 | 4000 |
| Maximum circumferential linear speed of the roller | m/min | 800 | 800 | 800 | 720 | 700 | 650 | 570 | 570 | 570 |
| centering precision | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.03 | 0.03 | 0.04 | 0.05 | 0.06 |
| Repetitive positioning accuracy | mm | 0.007 | 0.007 | 0.007 | 0.007 | 0.01 | 0.01 | 0.01 | 0.02 | 0.03 |
| weight | kg | 44 | 53 | 55 | 115 | 190 | 190 | 500 | 1150 | 1450 |
*Non standard customization according to customer requirements*
