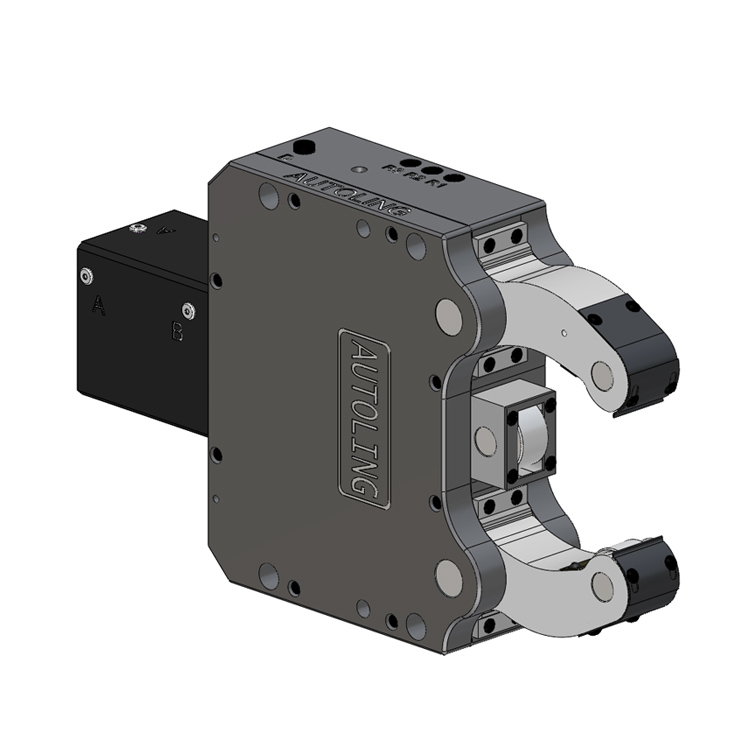

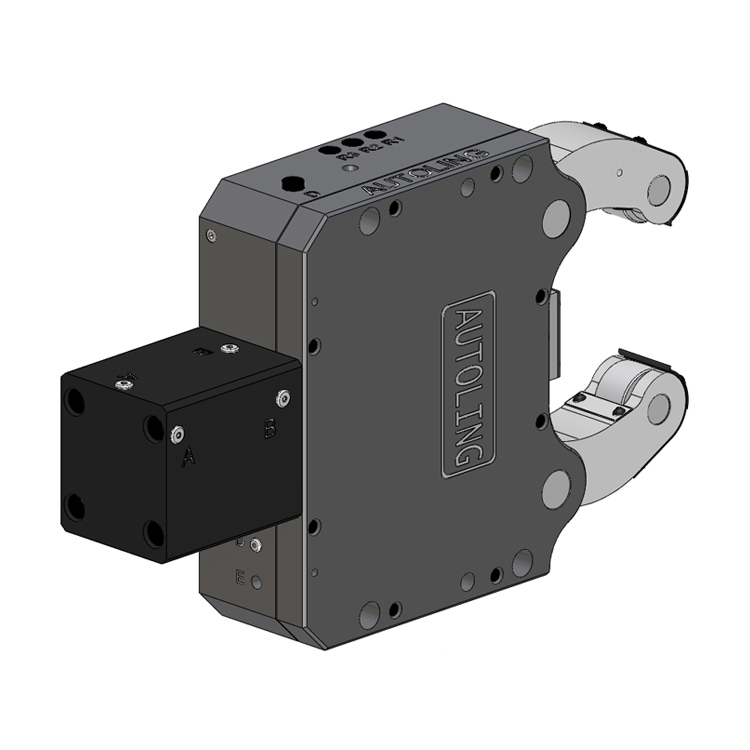

Programmable and self centering hydraulic center frame, which can work on most machine tools such as flat machine tools, inclined machine tools, line rail machine tools, and CNC machines. It can also provide installation brackets (fixed and knife following) and debugging work according to customer requirements
Drainage and compressed air interface
G 1/8 "for sizes below 3.2 and G 1/4" for sizes above 4
Cylinder clamping and loosening interface
G 1/4 "for sizes below 3.2 and G 3/8" for sizes above 4
*Retain technical changes
*For more detailed information, please request drawings
Operating oil pressure min/max
| AUTOLING Model size | TSC-0 | TSC-1 | TSC-2 | TSC-3 | TSC-3.1 | TSC-3.2 | TSC-4 | TSC-5 | TSC-5.1 | TSC-6 | |
| Minimum clamping diameter | C1 | 4 | 6 | 8 | 12 | 20 | 50 | 30 | 45 | 85 | 120 |
| Maximum clamping diameter | C2 | 45 | 65 | 102 | 152 | 165 | 200 | 245 | 310 | 350 | 460 |
| Maximum opening (excluding protective cover) | C3 | 46 | 71 | 104 | 157 | 182 | 210 | 248 | 318 | 360 | 462 |
| Maximum opening (including protective cover) | C4 | 46 | 71 | 104 | 155 | 172 | 213 | 246 | 320 | 358 | 462 |
| A | 168 | 202 | 279 | 427 | 440 | 456 | 603 | 695 | 747 | 945 | |
| B | 117 | 135 | 197 | 307 | 315 | 330 | 448 | 510 | 530 | 709 | |
| C | 51 | 67 | 82 | 120 | 125 | 125 | 155 | 184.5 | 217 | 236 | |
| D | 120 | 135 | 205 | 290 | 290 | 290 | 405 | 440 | 440 | 680 | |
| E | 105 | 118 | 170 | 262 | 262 | 262 | 365 | 400 | 400 | 610 | |
| F | 55 | 64 | 85 | 135 | 135 | 135 | 240 | 270 | 167 | 330 | |
| G | 48 | 55 | 70 | 95 | 95 | 95 | 110 | 145 | 145 | 150 | |
| O | 45 | 51 | 70 | 115 | 123 | 138 | 146 | 178 | 243 | 215 | |
| Arm thickness | K | 18 | 25 | 35 | 45 | 45 | 45 | 60 | 75 | 75 | 75 |
| Roller thickness | L | 7 | 12 | 19 | 25 | 25 | 25 | 25 | 29 | 29 | 29 |
| roller diameter | M | 17 | 19 | 35 | 47 | 47 | 47 | 52 | 62 | 62 | 80 |
| P | 58 | 58 | 102 | 130 | 130 | 130 | 150 | 160 | 165 | 210 | |
| P1 | 34 | 25 | 51 | 55 | 65 | 65 | 75 | 80 | 82.5 | 105 | |
| P2 | 24 | 33 | 51 | 75 | 65 | 65 | 75 | 80 | 82.5 | 105 | |
| Fixed bolt hole diameter | S | 9 | 11 | 14 | 18 | 18 | 18 | 23 | 23 | 23 | 27 |
| T | 46 | 53 | 68 | 93 | 93 | 93 | 105 | 143 | 143 | 148 | |
| V | 30 | 37 | 54 | 89 | 97 | 112 | 128 | 160 | 180 | 185 | |
| Piston area | cm2 | 8 | 8 | 19.6 | 38.5 | 38.5 | 38.5 | 63.5 | 78.5 | 78.5 | 113 |
| bar | 6/40 | 8/40 | 8/40 | 8/45 | 8/45 | 8/45 | 8/50 | 8/50 | 8/50 | 8/50 | |
| Maximum clamping force of the roller | dan | 110 | 168 | 459 | 1000 | 1000 | 1000 | 1500 | 2000 | 2000 | 3000 |
| Maximum circumferential linear speed of the roller | m/min | 900 | 850 | 800 | 725 | 725 | 725 | 715 | 700 | 700 | 685 |
| centering precision | mm | 0.02 | 0.02 | 0.02 | 0.04 | 0.04 | 0.04 | 0.04 | 0.06 | 0.06 | 0.06 |
| Repetitive positioning accuracy | mm | 0.005 | 0.005 | 0.005 | 0.007 | 0.007 | 0.007 | 0.007 | 0.01 | 0.01 | 0.01 |
| weight | kg | 4.5 | 8 | 17 | 50 | 51 | 59 | 103 | 168 | 170 | 400 |
*Non standard customization according to customer requirements*
