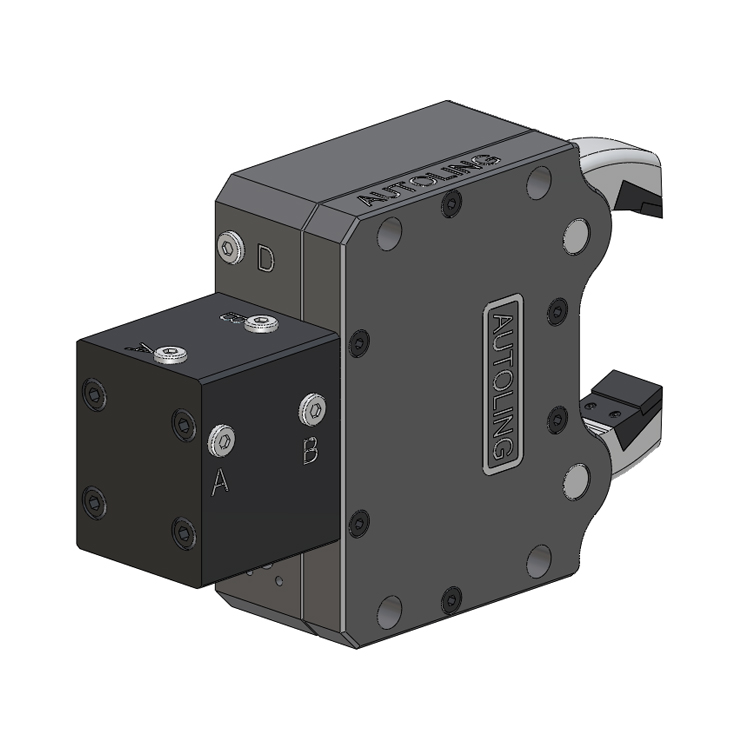

This series is almost suitable for all standard grinding applications such as internal and external grinding, slender shafts, camshafts, crankshafts, etc. We can also provide customized models to meet your requirements for special workpieces.

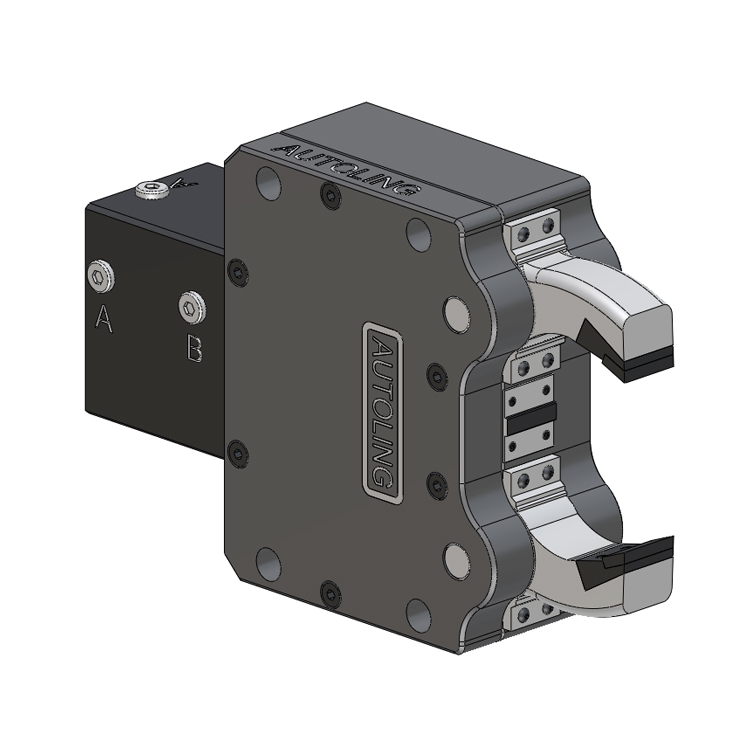

The drainage and compressed air interface is G 1/8 ", and the lubrication interface is G 1/8". The oil cylinder interface is G 1/4 "
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | GSP-1040 | GSP-1452 | GSP-2060 | GSP-10120 | |
| Minimum clamping diameter | U1 | 10 | 14 | 20 | 10 |
| Maximum clamping diameter | U2 | 40 | 52 | 60 | 120 |
| Maximum opening diameter | U3 | 44 | 56 | 64 | 124 |
| A | 170 | 195.5 | 195.5 | 430.5 | |
| B | 118 | 132.5 | 132.5 | 310 | |
| C | 45 | 50.5 | 50.5 | 115 | |
| D | 120 | 132 | 132 | 290 | |
| E | 105 | 118 | 118 | 262 | |
| F | 55 | 64 | 64 | 135 | |
| G | 40 | 44 | 44 | 65 | |
| K | 20 | 20 | 20 | 30 | |
| P | 58 | 65 | 65 | 132 | |
| V | 29 | 34 | 34 | 92 | |
| S | 9 | 11 | 11 | 18 | |
| T | 38 | 42 | 42 | 85 | |
| Maximum axial opening | U3 | 42 | 54 | 54 | 122 |
| connector | e | 1/8 | 1/4 | 1/4 | 1/4 |
| Cylinder area | d | 4.9 | 8 | 8 | 38.5 |
| Operating pressure, min/max | bar | 6/25 | 6/25 | 6/25 | 6/25 |
| Maximum operating pressure | bar | 25 | 25 | 25 | 25 |
| Clamping pressure/roller at 6bar | dan | 15 | 25 | 25 | 60 |
| Maximum clamping force | dan | 100 | 100 | 100 | 1000 |
| Repetitive positioning accuracy | ±/mm | 0.002 | 0.002 | 0.003 | 0.003 |
| weight | kg | 5.8 | 7 | 15 | 37 |
*Non standard customization according to customer requirements*
