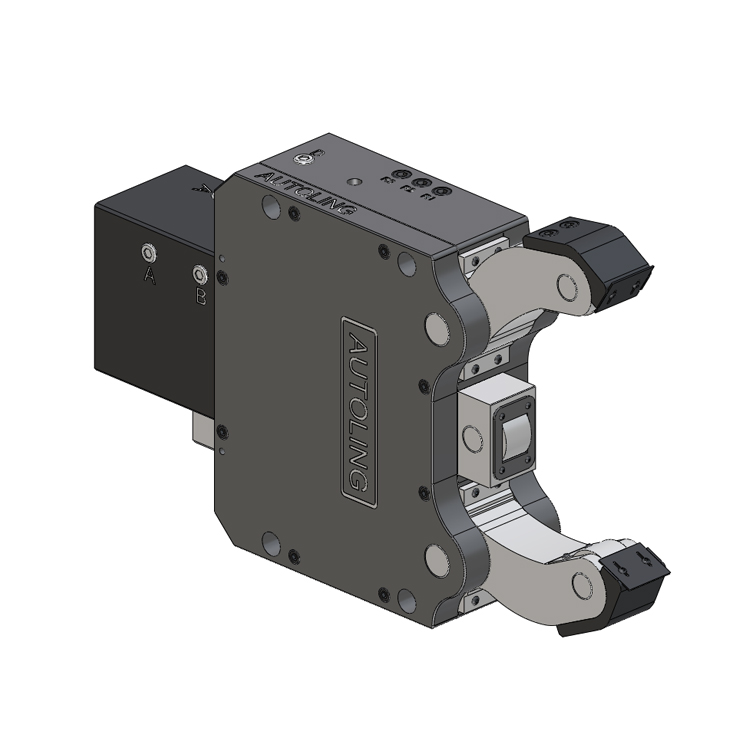

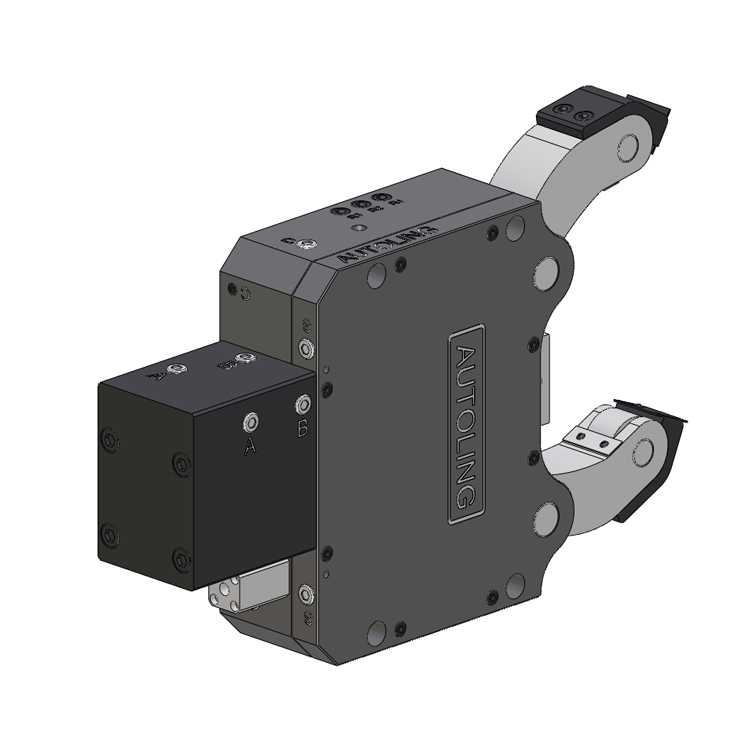

Automatic centering, vertical loading of workpieces, convenient for robotic loading and unloading, shortening processing time, effectively cleaning iron filings, and improving the efficiency of automated production lines.
Drainage and compressed air interface
G 1/8 "for sizes below 3.2 and G 1/4" for sizes above 4
Cylinder clamping and loosening interface
G 1/4 "for sizes below 3.2 and G 3/8" for sizes above 4
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | SCR-A 1 | SCR-A 2 | SCR-A 3 | SCR-A 3.1 | SCR-A 4 | SCR-A 5 | SCR-A 6 | |
| Minimum clamping diameter | C1 | 4 | 8 | 12 | 20 | 30 | 48 | 160 |
| Maximum clamping diameter | C2 | 52 | 80 | 130 | 150 | 220 | 268 | 460 |
| Maximum opening (excluding protective cover) | C3 | 57 | 87 | 141 | 162 | 238 | 289 | 495 |
| Maximum opening (including protective cover) | C4 | 53 | 81 | 136 | 158 | 232 | 284 | 489 |
| A | 208.5 | 279 | 427 | 435 | 609 | 686 | 980 | |
| B | 137 | 197 | 307 | 315 | 437 | 500 | 709 | |
| C | 71.5 | 82 | 120 | 120 | 172 | 186 | 271 | |
| D | 132 | 205 | 290 | 290 | 400 | 440 | 680 | |
| E | 118 | 170 | 262 | 262 | 365 | 400 | 610/640 | |
| F | 64 | 85 | 135 | 135 | 240 | 270 | 330 | |
| G | 55 | 68 | 93 | 93 | 110 | 145 | 150 | |
| O | 51 | 70 | 115 | 123 | 146 | 178 | 215 | |
| Arm thickness | K | 25 | 35 | 45 | 45 | 60 | 75 | 75 |
| Roller thickness | L | 12 | 19 | 25 | 25 | 25 | 29 | 29 |
| roller diameter | M | 19 | 35 | 47 | 47 | 52 | 62 | 80 |
| P | 69 | 102 | 130 | 130 | 150 | 160 | 210 | |
| P1 | 32.5 | 51 | 65 | 65 | 75 | 80 | 105 | |
| P2 | 36.5 | 51 | 65 | 65 | 75 | 80 | 105 | |
| Fixed bolt | S | 11 | 14 | 18 | 18 | 23 | 23 | 27 |
| T | 49 | 70 | 95 | 95 | 105 | 143 | 148 | |
| V | 42.5 | 54 | 89 | 97 | 128 | 160 | 175 | |
| Z | 26.5 | 41 | 66 | 74 | 111 | 135 | 230 | |
| Z1 | 24 | 34 | 60 | 74 | 106 | 130 | 225 | |
| Piston area | cm2 | 8 | 19.5 | 38.5 | 38.5 | 63.5 | 78.5 | 132.5 |
| Operating oil pressure min/max | bar | 6/40 | 8/40 | 8/45 | 8/45 | 8/50 | 8/50 | 8/50 |
| Maximum clamping force of the roller | dan | 100 | 350 | 1000 | 1000 | 1500 | 2000 | 3000 |
| Maximum clamping force of the roller | m/min | 850 | 950 | 800 | 800 | 725 | 670 | 525 |
| centering precision | mm | 0.02 | 0.02 | 0.04 | 0.04 | 0.05 | 0.06 | 0.06 |
| Repetitive positioning accuracy | mm | 0.005 | 0.005 | 0.007 | 0.007 | 0.007 | 0.01 | 0.01 |
| weight | kg | 7 | 17 | 43 | 45 | 105 | 152 | 430 |
*Non standard customization according to customer requirements*
