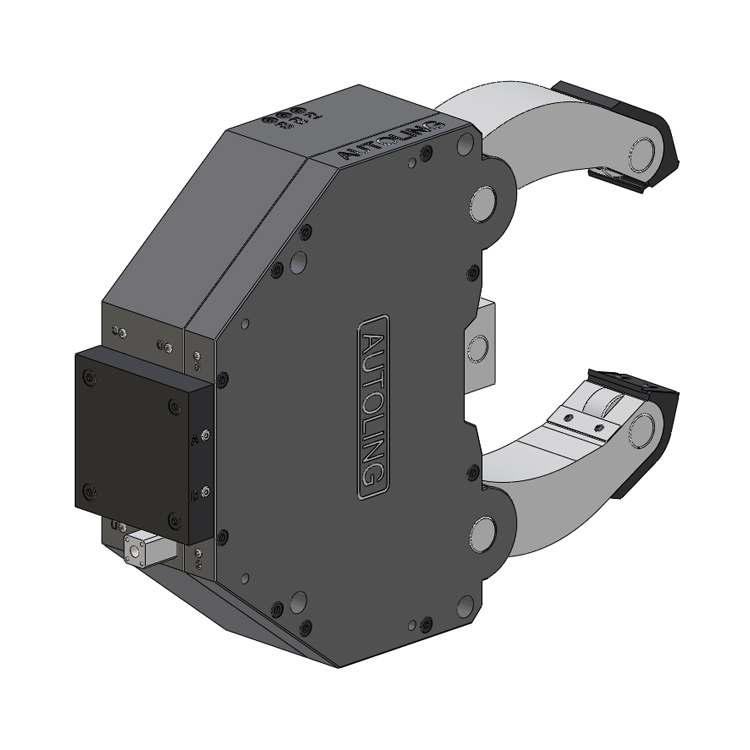

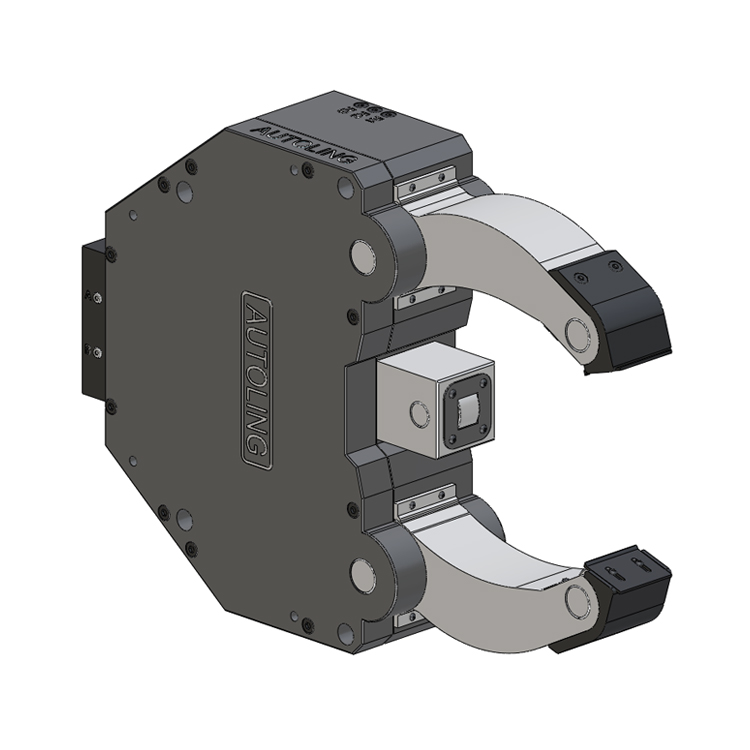

Automatic centering, super compact design, with built-in oil cylinder, the center frame is more compact and exquisite overall, requiring less space, making it easy to install the machine tool in a narrow space. It has a large clamping range and can be customized non-standard.
Drainage and compressed air interface G 1/4 "
The oil cylinder interface is G 3/8
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | TC-3 | TC-4 | TC-4.1 | TC-5 | TC-5.1 | TC-6 | TC-6.1 | TC-7 | |
| Minimum clamping diameter | C1 | 65 | 58 | 90 | 80 | 100 | 135 | 215 | 220 |
| Maximum clamping diameter | C2 | 235 | 280 | 330 | 390 | 410 | 460 | 510 | 630 |
| Maximum opening (excluding protective cover) | C3 | 256 | 285 | 335 | 400 | 424 | 465 | 514 | 642 |
| Maximum opening (including protective cover) | C4 | 245 | 291 | 343 | 565 | 438 | 473 | 540 | 670 |
| A | 445 | 573 | 612 | 753 | 763 | 816 | 816 | 1120 | |
| B | 357 | 450 | 490 | 607 | 615 | 670 | 680 | 950 | |
| C | 88 | 123 | 122 | 148 | 146 | 146 | 135.5 | 170 | |
| D | 345 | 400 | 400 | 485 | 485 | 680 | 680 | 900 | |
| E1 | 313 | 360 | 360 | 445 | 445 | 610 | 610 | 730 | |
| E2 | 313 | 360 | 360 | 445 | 445 | 640 | 640 | 810 | |
| F | 140 | 180 | 180 | 240 | 240 | 330 | 330 | 440 | |
| G | 105 | 125 | 125 | 150 | 150 | 150 | 150 | 190 | |
| O | 150 | 168 | 198 | 230 | 240 | 215 | 245 | 375 | |
| Arm thickness | K | 45 | 60 | 60 | 75 | 75 | 75 | 75 | 100 |
| Roller thickness | L | 25 | 25 | 25 | 29 | 29 | 29 | 29 | 32 |
| roller diameter | M | 47 | 52 | 52 | 62 | 62 | 80 | 80 | 100 |
| P | 154 | 158 | 158 | 170 | 170 | 210 | 210 | 270 | |
| P1 | 92 | 79 | 79 | 75 | 75 | 105 | 105 | 135 | |
| P2 | 62 | 79 | 79 | 95 | 95 | 105 | 105 | 135 | |
| S | 18 | 23 | 23 | 23 | 23 | 27 | 27 | 35 | |
| T | 103 | 123 | 123 | 148 | 148 | 148 | 148 | 188 | |
| V | 115 | 140 | 170 | 185 | 209 | 185 | 215 | 290 | |
| Piston area | cm2 | 38.5 | 63 | 63 | 78 | 78 | 113 | 113 | 176.6 |
| Operating oil pressure min/max | bar | 8/45 | 8/50 | 8/50 | 8/50 | 10/50 | 10/50 | 10/50 | 12/50 |
| Maximum clamping force of the roller | dan | 1020 | 1500 | 1500 | 2000 | 2000 | 3000 | 3000 | 4000 |
| Maximum circumferential linear speed of the roller | m/min | 725 | 750 | 750 | 700 | 700 | 700 | 700 | 630 |
| centering precision | mm | 0.02 | 0.02 | 0.02 | 0.06 | 0.06 | 0.06 | 0.06 | 0.08 |
| Repetitive positioning accuracy | mm | 0.007 | 0.007 | 0.007 | 0.01 | 0.01 | 0.01 | 0.02 | 0.03 |
| weight | kg | 64 | 114 | 116 | 209 | 209 | 335 | 330 | 1100 |
*Non standard customization according to customer requirements*
