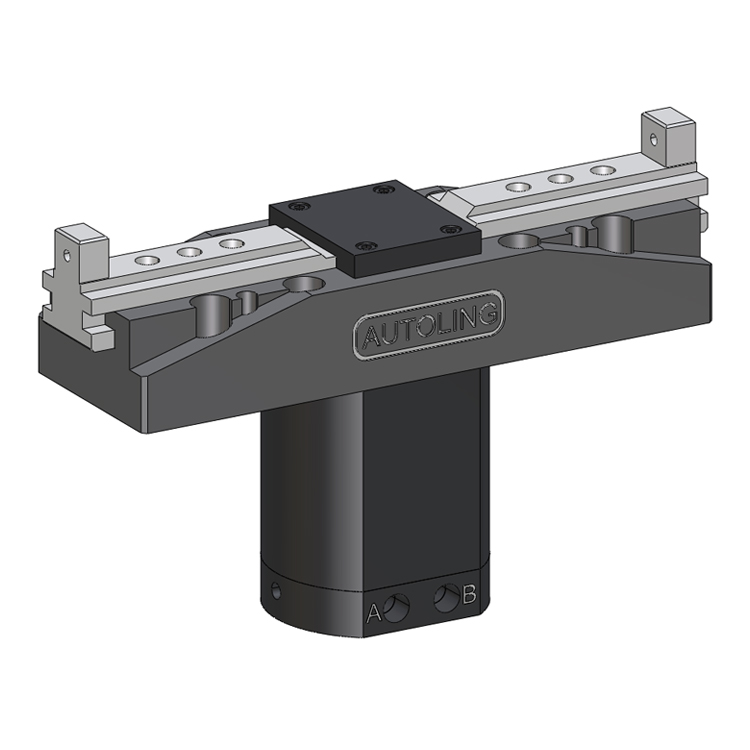

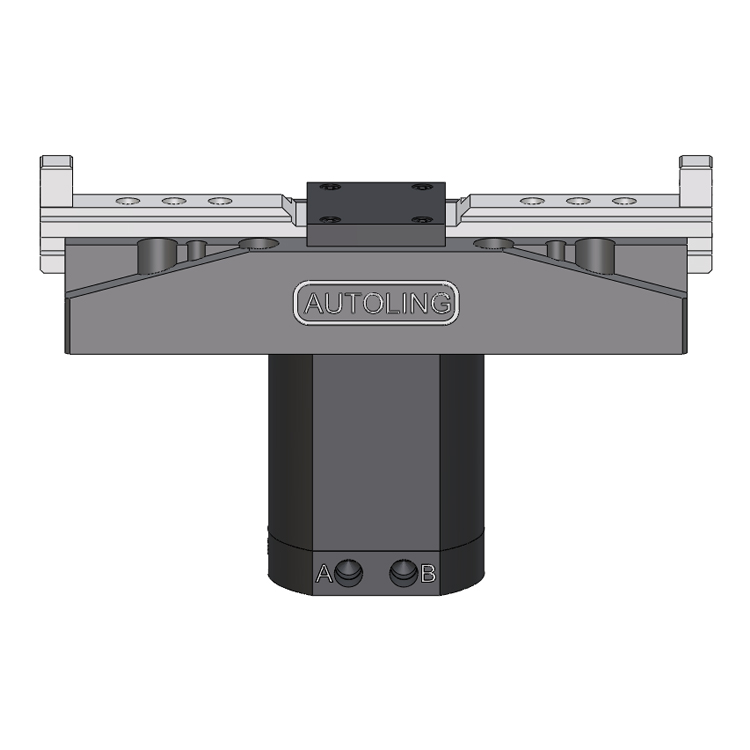

Automatic centering, two claw synchronization, long stroke, high precision, fully sealed, dustproof, anti iron filings, compact design, more compact and exquisite, requiring less space, convenient for installation with small space, large clamping range, and non-standard customization.
*Retain technical changes
*For more detailed information, please request drawings
| AUTOLING Model size | TP-20 | TP-30A | TP-30 | TP-40 | TP-50 | |
| Minimum clamping diameter | C1 | - | - | - | - | - |
| Maximum clamping diameter | C2 | 150 | 180 | 210 | 200 | 215 |
| A | 215 | 250 | 280 | 270 | 300 | |
| B | 88 | 88 | 88 | 88 | 110 | |
| B1 | 96 | 96 | 96 | 96 | 115 | |
| C | 53 | 53 | 53 | 53 | 65 | |
| D | 40 | 40 | 40 | 40 | 50 | |
| E(h6） | 18 | 18 | 22 | 22 | 28 | |
| F | 4 | 4 | 4 | 4 | 5 | |
| Gmax | 249 | 295 | 327 | 331 | 369 | |
| Gmin | 229 | 265 | 297 | 291 | 319 | |
| H | 75 | 75 | 75 | 75 | 90 | |
| H1 | 13 | 13 | 13 | 13 | 15 | |
| J | 94 | 94 | 94 | 94 | 105 | |
| J1 | 76 | 76 | 76 | 76 | 105 | |
| J2 | 83.5 | 96 | 96 | 110 | 120 | |
| K | M10x1.5 | M10x1.5 | M12x1.75 | M12x1.75 | M12x1.75 | |
| L | M10 | M10 | M10 | M10 | 168M10 | |
| M | 12 | 14 | 14 | 14 | 16 | |
| Piston area pressing side | cm2 | 28.27 | 28.27 | 28.27 | 28.27 | 38.48 |
| Piston area pull side | cm2 | 25.13 | 25.13 | 25.13 | 25.13 | 33.57 |
| Claw stroke (diameter) | mm | 20 | 30 | 30 | 40 | 50 |
| Maximum clamping force | kN | 16.2(1650) | 17.7(1800) | 17.7(1800) | 14.7(1500) | 20.3(2070) |
| weight | kg | 9.5 | 11 | 12 | 12 | 18.5 |
*Non standard customization according to customer requirements*
